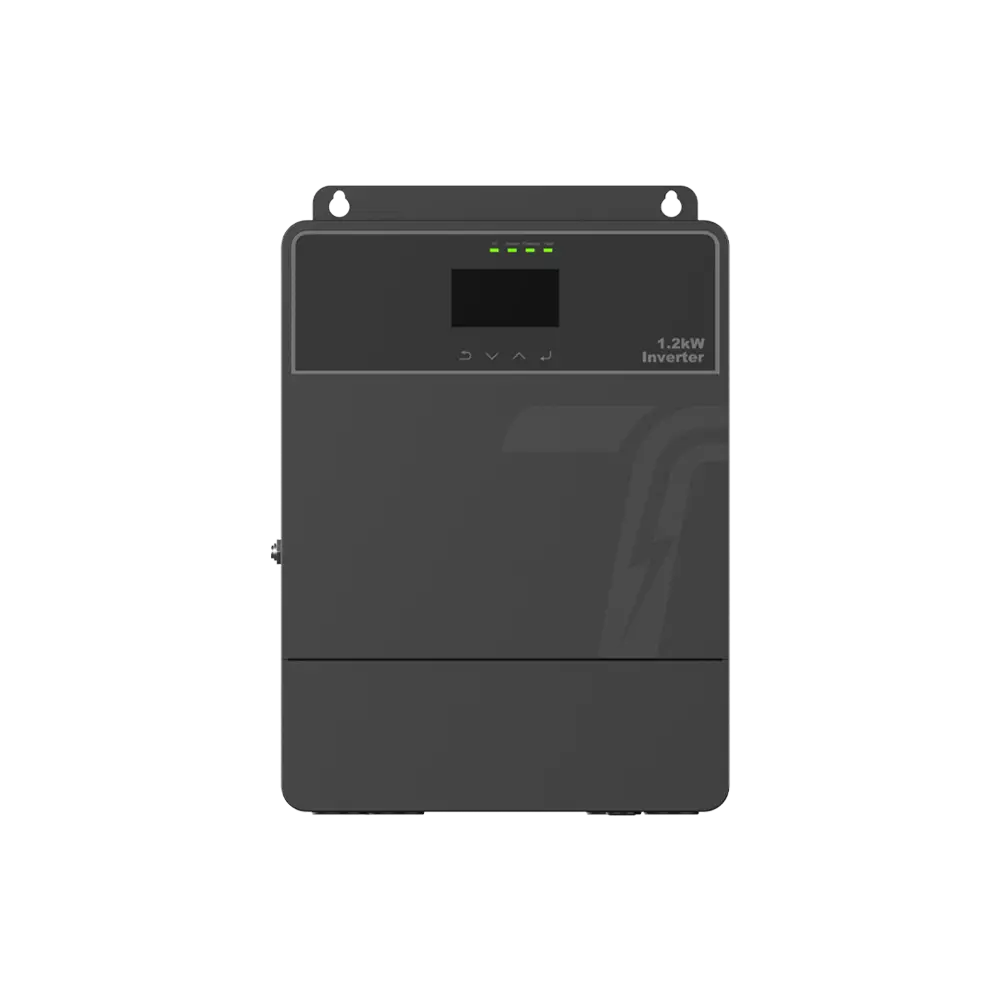

1.2kW Off Grid MPPT Solar Inverter Pure Sine Wave

1.2kW Off Grid MPPT Solar Inverter Pure Sine Wave 1200VA/1200W – Focus on Manufacturers

SolarBatteryforHome.com manufactures and produces solar inverters, which support home solar energy storage linked to solar photovoltaic panels and lithium solar batteries.

SolarBatteryforHome.com is a specialised manufacturer of custom solar off-grid and hybrid inverters, dedicated to creating solar inverter solutions with the highest conversion efficiencies and best quality. Our inverters support digital upgrades (monitoring and management using an app) and offer up to 95% conversion efficiency as well as a 5-year warranty.

1.2kW Off Grid MPPT Solar Inverter Pure Sine Wave 1200VA/1200WBrief

The 1200W off-grid MPPT solar inverter outputs a pure sine wave, compatible with 99.99% of electronic devices, with a conversion efficiency of up to 95%, and adopts perfect protection measures, waterproof, dustproof, anti-radiation, and supports outdoor and indoor wall-mounted installation. The inverter supports MPPT solar power and battery power functions in one, providing uninterrupted power support, which is ideal for home, emergency, industrial and other application scenarios.

1.2kW Off Grid MPPT Solar Inverter Pure Sine Wave 1200VA/1200WFeatures

  • Support WIFI/4G digital upgrade
  • Excellent battery management
  • Support CAN/RS485 communication
  • Built-in MPPT controller, support 20Vdc~100Vdc
  • Maximum input power 14A/1000W
Product Inquiries

Description



TECHNICAL PARAMETER
Rated Output Power 1.2kVA
Rated Output Power 1.2kW
Nominal DC Input Voltage 12Vdc
Input Voltage Waveform Sinusoidal(utility or generator)
Nominal Input Voltage 230Vac
Nominal Input Frequency 50Hz/60Hz(Auto detection)
Efficiency(Line Mode) >95% (Rated R load, battery full charged)
Pass Through Without Battery Yes
Nominal Input Voltage 230Vac
Input Voltage Range Normal mode 90-280Vac, UPS mode 170-280Vac
Max. Charge Current 60A
Over Charge Protection Yes
Max. PV Open Circuit Voltage 125Vdc
PV Voltage Working Range 15V-125Vdc
MPPT Operating Range 20V-100Vdc
Max.input Power 1.0kW
Max. Solar Charging Current 60A
Max. Input Current 14A
Min.startup Voltage 11.5Vdc
Rated Output Power (VA) 1.2kVA
Rated Output Power (W) 1.2kW
Nominal Output Voltage 220Vac±5%
Nominal Output Frequency (Hz) 50+0.3Hz/60Hz+0.3Hz(Adjustable)
Parallel Capability No
Peak Efficiency >93%
Over-Load Protection (Smps Load) 5.5s@>150%load; 10.5s@105%~150%load
Weight 6.0kg
Dimension (D×W×H) 332×220×107mm
