Description
TECHNICAL PARAMETER | |||

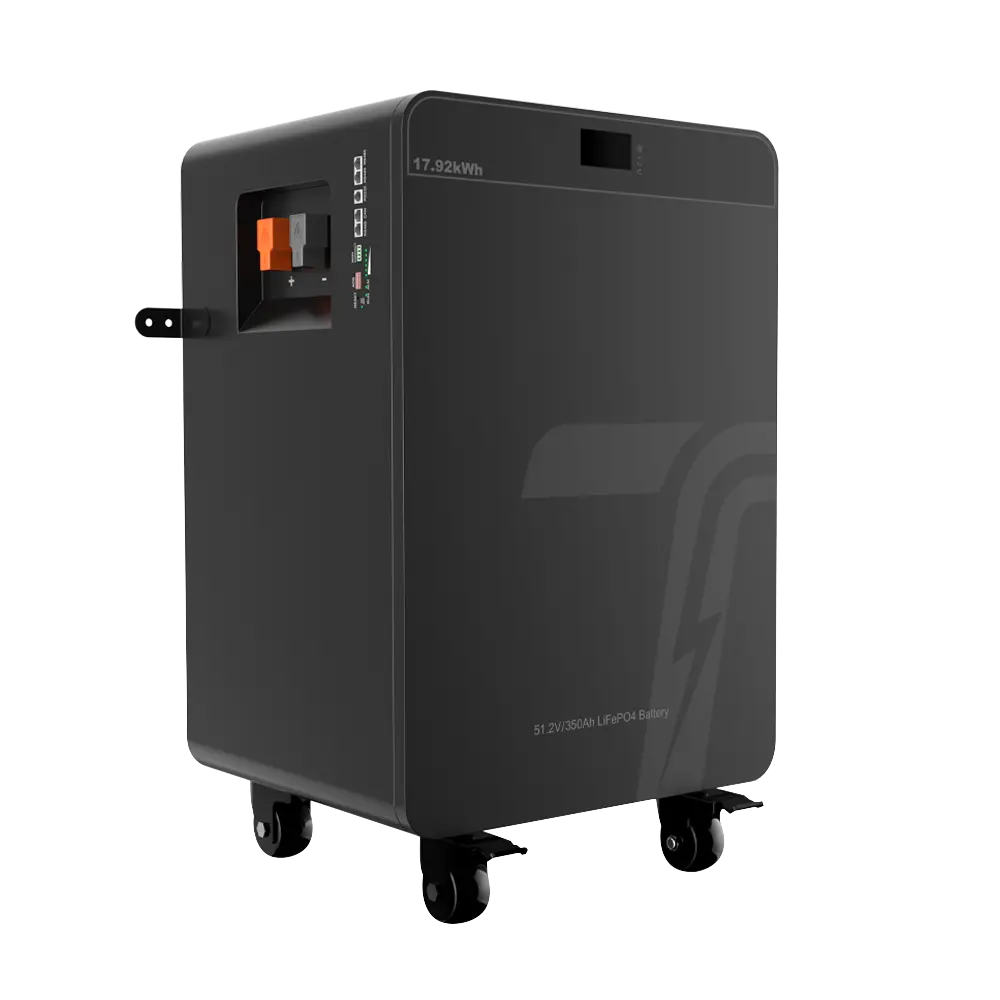

Battery Capacity | 17.92kWh | ||
Single Battery Capacity | 350Ah | ||
Nominal Operating Voltage | 51.2V | ||
Maximum Output Current | 210A | ||
Standard input Current | 170A(Max 200A) | ||
Overpressure Protection | 58.4V | ||
Overcharge Protection Recovery | 54.0V | ||
Overdischarge Protection | 43.2V | ||
Overdischarge Protection Recovery | 46.4V | ||
Charging Over-Temperature Protection | 60°C | ||
Charge Over-Temperature Protection Recovery | 55°C | ||
Charging Low Temperature Protection | 0°C | ||
Low Temperature Protection Recovery | 5°C | ||
Discharge Over-Temperature Protection | 60°C | ||
Discharge Over-Temperature Protection Recovery | 55°C | ||
Low Temperature Protection | -10°C | ||
Low Temperature Protection Recovery | -5°C | ||
Charging Overcurrent | 210A | ||
Discharge Overcurrent Protection | 210A | ||
Short Circuit Protection | There are recovery methods “Load Removal”. | ||
Amount Of Electricity Shipped | 40% to 60% | ||
Equalization | Passive equilibrium | ||
Power Off Self-Consumption | < 300uA | ||
Battery Model | BYD LiFePO4 Battery (Grade A) | ||
Battery Cycle Life | ≥ 6000@25°C,70% EOL | ||
Communication Protocols | RS485、CAN | ||
Dimension (LxWxH) | 615x565x1040mm | ||
Weights | 138kg |
