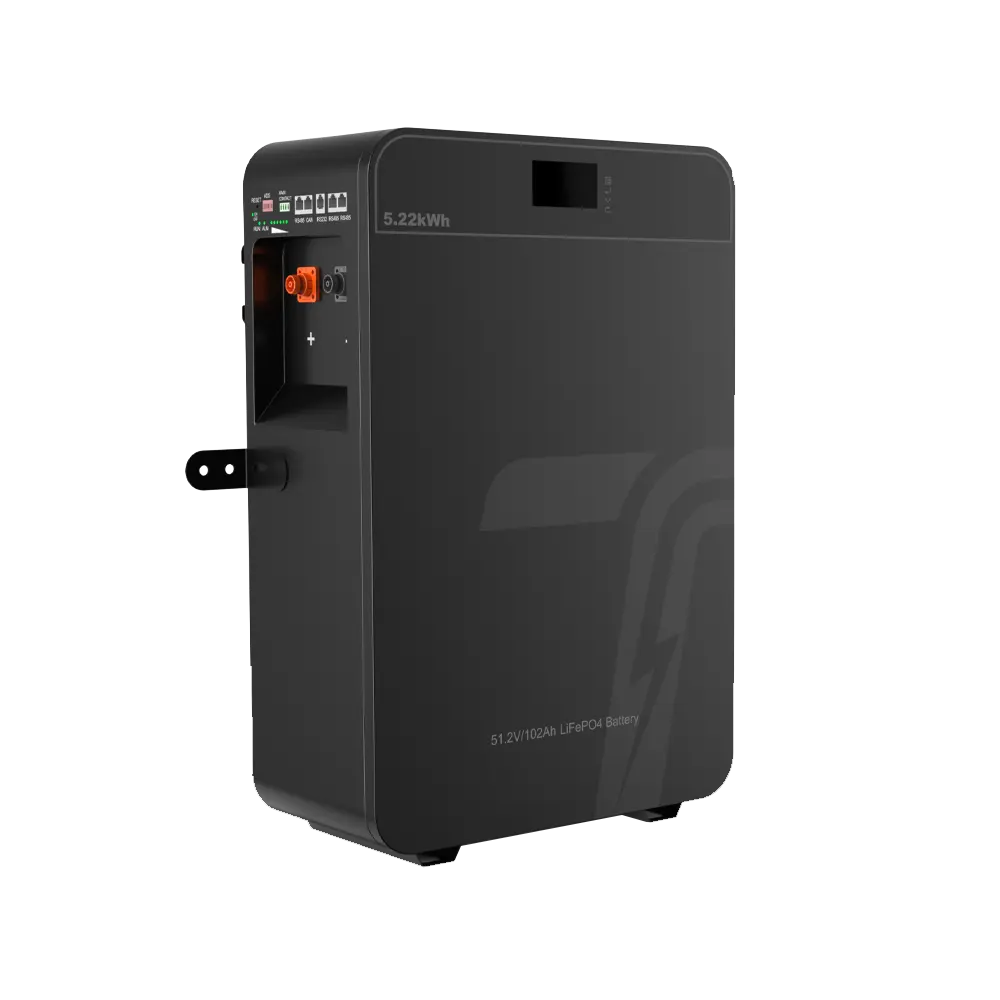

51.2V 100Ah LiFePO4 Solar Lithium Battery

51.2V/100Ah 5.22kWh Lithium Battery Storage (Wall Mount / 6000 Cycles) – Focus on Manufacturers

SolarBatteryforHome manufactures and supplies solar lithium iron phosphate batteries, solar lithium iron phosphate batteries are also known as lithium iron phosphate battery packs, solar lithium batteries, etc., which is a battery system consisting of multiple lithium iron phosphate monobloc batteries connected in parallel or in series, and is usually mounted using wall mounting.

SolarBatteryforHome is a specialised manufacturer of custom manufactured Lithium Iron Phosphate battery manufacturers for lithium battery storage solutions. We use BYD LiFePo4 Battery as the core and offer battery systems with up to 6,000+ cycle life, a 5-year warranty, and a lifespan of over 10 years.

51.2V/100Ah 5.22kWh Lithium Battery Storage (Wall Mount / 6000 Cycles) – Brief

51.2V 100Ah solar lithium battery is ideal for home use and emergency use, the battery core is made of BYD lithium iron phosphate battery, which has been tested by pinprick experiment, safety is guaranteed, it has UN38.3/MSDS/UL/CE/FCC certificates, and it supports exporting to more than one hundred countries. The battery is wall-mounted, waterproof, dustproof and anti-pollution, with a deep cycle life of up to 6,000+ times, which is perfect for solar energy storage, peak shaving and valley filling energy storage, family emergency energy storage batteries, and can replace GEL, lead-acid, and AGM solar batteries.

51.2V/100Ah 5.22kWh Lithium Battery Storage (Wall Mount / 6000 Cycles) – Application

  • Solar energy storage, emergency energy storage systems
  • UPS batteries, enterprise server room batteries
  • Base station batteries, scientific collection station batteries
  • Hospitals, security agencies, medical cold storage station batteries
  • Music festivals, rallies, food festivals
  • Automatic irrigators, solar greenhouses, nurseries
  • Disaster Relocation Camps
  • Street lights, billboards, signal towers
Product Inquiries

Description



TECHNICAL PARAMETER
Battery Capacity 5.22kWh
Single Battery Capacity 102Ah
Nominal Operating Voltage 51.2V
Maximum Output Current 120A
Standard input Current 50A(Max 100A)
Overpressure Protection 58.4V
Overcharge Protection Recovery 54.0V
Overdischarge Protection 43.2V
Overdischarge Protection Recovery 46.4V
Charging Over-Temperature Protection 60°C
Charge Over-Temperature Protection Recovery 55°C
Charging Low Temperature Protection 0°C
Low Temperature Protection Recovery 5°C
Discharge Over-Temperature Protection 60°C
Discharge Over-Temperature Protection Recovery 55°C
Low Temperature Protection -10°C
Low Temperature Protection Recovery -5°C
Charging Overcurrent 110A
Discharge Overcurrent Protection 125A
Short Circuit Protection There are recovery methods “Load Removal”.
Amount Of Electricity Shipped 40% to 60%
Equalization Passive equilibrium
Power Off Self-Consumption < 300uA
Battery Model BYD LiFePO4 Battery (Grade A)
Battery Cycle Life ≥ 6000@25°C,70% EOL
Communication Protocols RS485、CAN
Dimension (LxWxH) 398x200x597mm
Weights 46kg
