25kW 25kWh Stacked Home Solar Lithium Battery Backup Energy Storage System

25kW 25kWh Stacked Home Solar Lithium Battery Backup Energy Storage System – Focus on Manufacturers

Stacked home solar lithium battery backup energy storage system manufactured by SolarBatteryforHome.com is a kind of stacked energy storage device with built-in battery and inverter, supporting multi-layer stacking, free to increase the power and capacity according to the need, supporting off-grid and grid-connected functions, the device can also be called solar energy storage system, stacked solar lithium battery, all-in-one home energy storage.

SolarBatteryforHome.com is an OEM ODM manufacturer specializing in customized stacked home solar lithium battery backup energy storage system with UN38.3/MSDS/UL/CE/FCC certified products, supporting exports to more than one hundred countries, dedicated to creating high-performance, cost-effective, high-quality stacked home solar lithium battery backup energy storage system.

25kW 25kWh Stacked Home Solar Lithium Battery Backup Energy Storage System – Brief

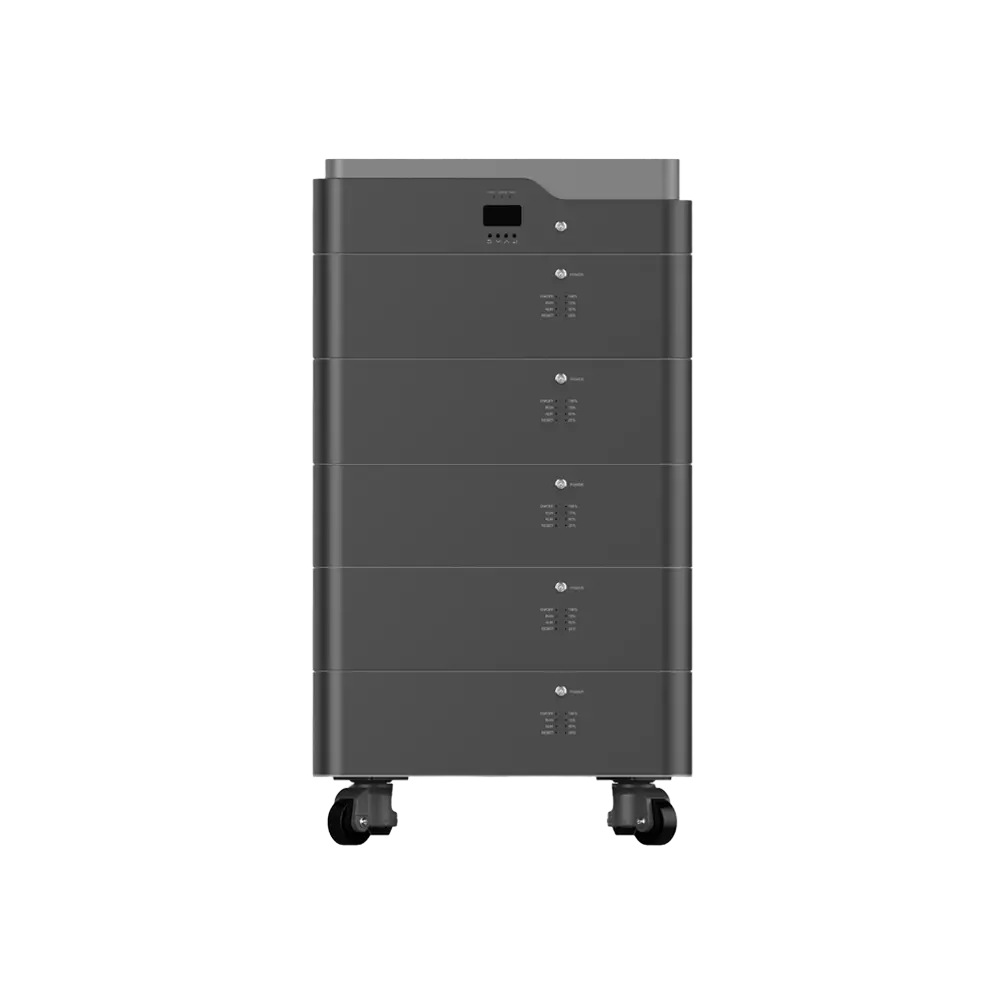

25kW 25kWh Stacked Home Solar Lithium Battery Backup Energy Storage System is built-in BYD Lithium Iron Phosphate A-grade batteries with a cycle life of 5000+ cycles, with a single layer power of 5kW, single layer capacity of 5kWh, and can be stacked to a maximum of 25kW/25kWh. The Stacked Home Solar Lithium Battery Backup Energy Storage System supports both grid and photovoltaic charging, and is equipped with wheels at the bottom to allow for free movement.

25kW 25kWh Stacked Home Solar Lithium Battery Backup Energy Storage System –Features

  • BYD Class A Battery
  • Cycle life 5000+
  • 5 years warranty
  • Built-in pure sine wave inverter
  • Support grid, PV charging
  • 10ms UPS switchover
Product Inquiries

Description



TECHNICAL PARAMETER
Rated Power 25000W
Battery Capacity 26114Wh
Lifespan 5000+
Waterproof Grade IP21
Rated Voltage 51.2V
AC Rated Output Voltage 110V/220V, 50Hz/60Hz(Optional)
AC Rated Output Power 25000W
DC48V Output 48V,25A Max.50A
Individual Battery Capacity 100Ah
Rated Capacity(Single layer) 5200Wh
Protection Board On-Resistance ≤10mR
Charging Methods CP/PV
AC Rated Input Voltage 110V/220V(Optional)
AC Max Input Power 800W ~ 4500W
PV(MPPT) 120V ~ 450V / Max.800W ~ 5600W
Charge Cut-Off Voltage 58.4V / CELL
Standard Charging Current 100A
Discharge Cut-Off Voltage 44.8V / CELL
Maximum Discharge Current 100A
Operating Temperature Range -10℃~60℃
Communication Methods DB15 Port Parallel, USB, RS485
Amount of Power Shipped 30% ~ 50%
Inverter Net Weight(Single) 18.65Kg±1Kg (41.1lbs ± 1lbs)
Battery Net Weight(Single) 55Kg±1Kg (121.3lbs ± 1lbs)
Base Net Weight(Single) 12.75Kg±1Kg (28.1lbs ± 1lbs)
Overall Weight 86.4Kg±1Kg (190.5lbs ± 1lbs)
Inverter Dimensions(L×W×H) 500mm×500mm×150mm
Battery Dimensions(L×W×H) 500mm×500mm×230mm
Base Dimensions(L×W×H) 500mm×500mm×151mm
