Description
| TECHNICAL PARAMETER | |||
| Rated Output Power | 5.5kVA | ||
| Rated Output Power | 5.5kW | ||
| Nominal DC Input Voltage | 48Vdc | ||
| Input Voltage Waveform | Sinusoidal(utility or generator) | ||
| Nominal Input Voltage | 230Vac | ||
| Nominal Input Frequency | 50Hz/60Hz(Auto detection) | ||
| Efficiency(Line Mode) | ＞95% (Rated R load, battery full charged) | ||
| Pass Through Without Battery | Yes | ||
| Nominal Input Voltage | 230Vac | ||
| Input Voltage Range | Normal mode 90-280Vac, UPS mode 170-280Vac | ||
| Max. Charge Current | 80A | ||
| Over Charge Protection | Yes | ||
| Max. PV Open Circuit Voltage | 500Vdc | ||
| PV Voltage Working Range | 120V-500Vdc | ||
| MPPT Operating Range | 120V-450Vdc | ||
| Max.input Power | 6.0kW | ||
| Max. Solar Charging Current | 100A | ||
| Max. Input Current | 18A | ||
| Min.startup Voltage | 46Vdc | ||
| Rated Output Power (VA) | 5.5kVA | ||
| Rated Output Power (W) | 5.0kW | ||
| Nominal Output Voltage | 220Vac±5% | ||
| Nominal Output Frequency (Hz) | 50+0.3Hz/60Hz+0.3Hz(Adjustable) | ||
| Parallel Capability | Yes, up to 9 units | ||
| Peak Efficiency | ＞93% | ||
| Over-Load Protection (Smps Load) | 5.5s@＞150%load; 10.5s@105%~150%load | ||
| Weight | 24.8kg | ||
| Dimension (D×W×H) | 550×378.5×205mm | ||
5.5W Off-Grid MPPT Solar Inverter Pure Sine Wave 5.5kVA/5.5kW – Application Scenarios
This 5.5kW off-grid MPPT solar inverter, with its outstanding performance and versatility, is an ideal choice for building independent, reliable power supply systems, and is widely applicable in the following scenarios:

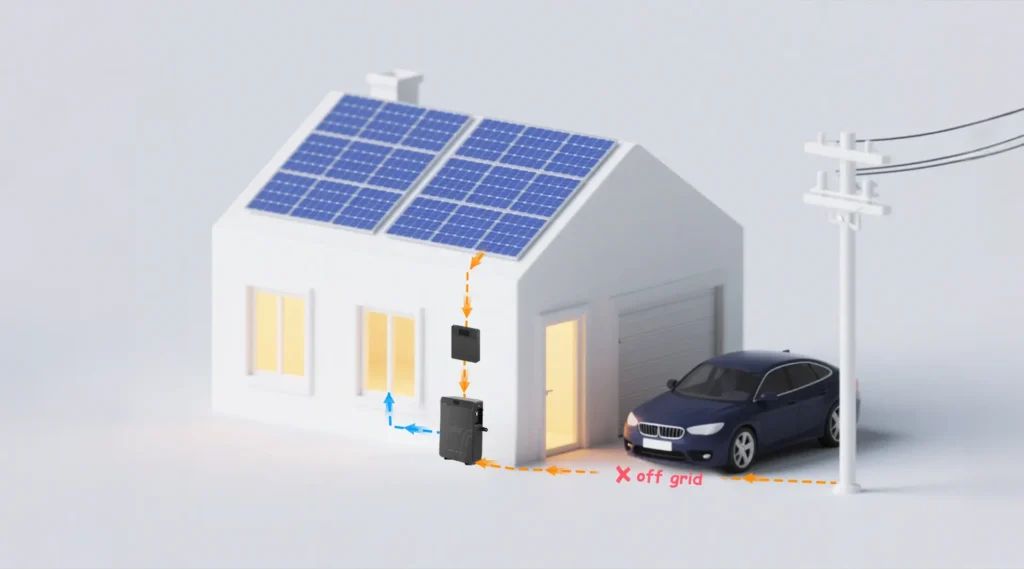

- Off-Grid Residential Power Systems: Especially suitable for remote areas, regions with underdeveloped power infrastructure, or households seeking energy independence. It ensures 24/7 uninterrupted power supply, even during grid outages, meeting basic electricity needs such as lighting, refrigeration, and television, significantly reducing reliance on the public grid and saving on electricity costs.
- Emergency backup power: During natural disasters, power outages, or extreme weather conditions, this inverter serves as a reliable emergency power source, providing continuous power support for homes or critical equipment to ensure the normal operation of communication systems, medical devices, and essential living facilities.
- Industrial and commercial applications: Suitable for industrial and commercial environments requiring independent power supply solutions, such as small factories, farms, resorts, outdoor camps, and mobile office spaces. Its high conversion efficiency and pure sine wave output can stably drive various precision equipment and motor loads.
- Modular and Customizable Systems: Supports modular integration with photovoltaic panels, energy storage batteries (such as LiFePO₄ lithium batteries), and smart controllers. It can be flexibly configured and customized according to specific power requirements (e.g., battery capacity ranging from 5 to 25 kWh, output voltage options of 110V/220V/380V) to meet personalized needs in various scenarios.
- Extreme environment adaptability: Features waterproof, dustproof, and radiation-resistant properties, and supports a wide operating temperature range of -40°C to +70°C. It can be installed indoors or outdoors on walls, ensuring stable operation even under harsh weather conditions.
This inverter not only provides stable power output but also offers intelligent management and efficient conversion, delivering safe, economical, and sustainable energy solutions for users.
